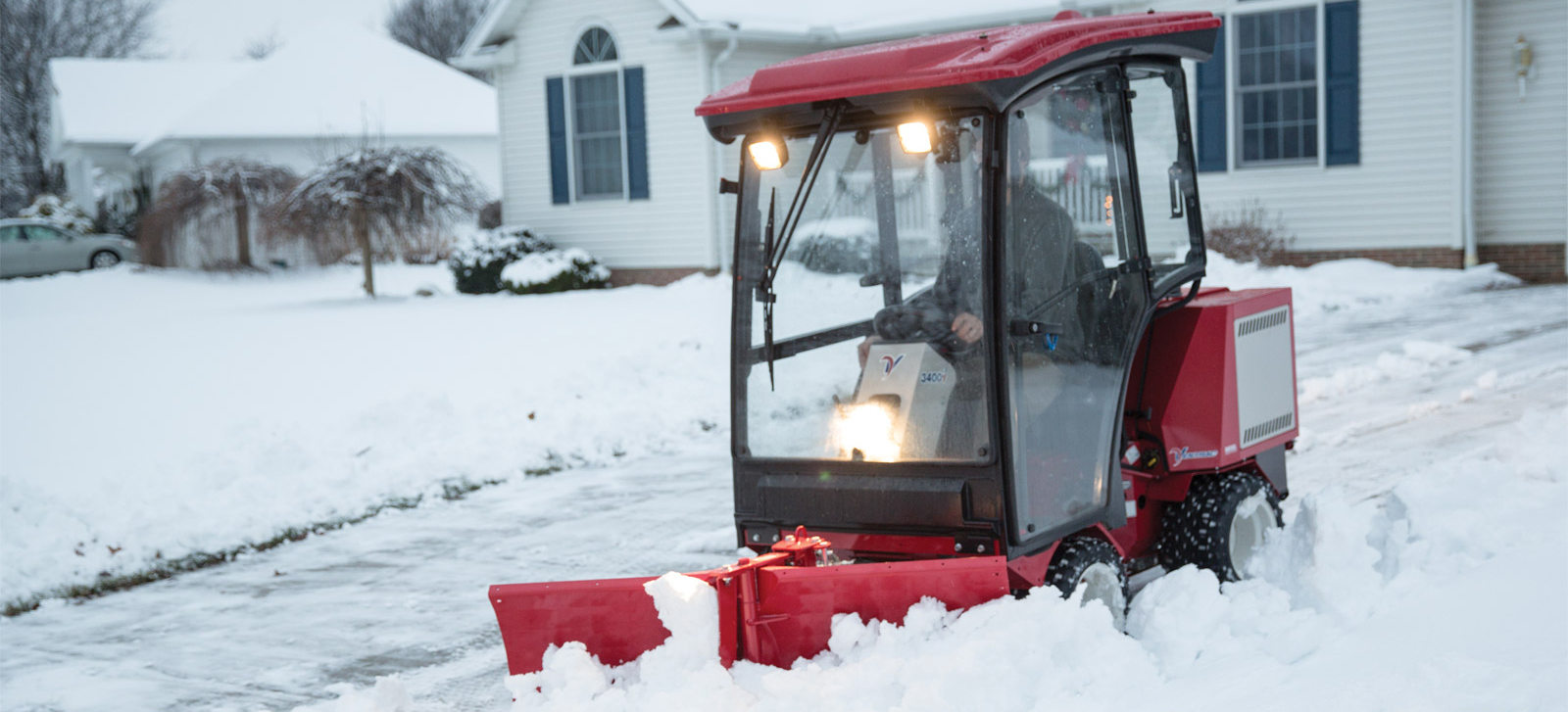

Sidewalk Snow Management

Snow doesn't stand a chance with Ventrac. Built for the demands of winter, Ventrac provides the best in snow clearing equipment. Whether it's a light dusting or handling a major event, Ventrac has what it takes to clear it away with speed and efficiency. Ventrac's compact profile greatly reduces landscape damage caused by larger equipment.

Recommended Equipment for Snow Management

SSV 2100

Specifications

Engine Kawasaki FS600V
Fuel Gas
HP (SAE J1995 gross) 18.5hp
Cooling Air
Cylinders 2
Displacement 603cc
Peak Torque 32.5 ft lb @ 2200rpm

Features

  • 34" Machine Width
  • 4x4 Skid Steer System
  • Self-Aligning, Quick Attach Hitch
  • Offset Single Handed Drive Controls
  • Adjustable Weight Transfer System
  • Industrial Grade Engine

Sidewalk Snow Broomlb540

Specifications

Tractor Compatibility 3400
Working Width 54"
Broom Diameter 16"
Rotation Forward
Broom Speed 300rpm @3200 engine rpm

3400 Series

Specifications

Engine B&S Vanguard
Fuel Gas
HP 20
Cooling Air
Cylinders 2
Peak Torque 34 ft/lb
Turning Radius 28 in
Max Slope 20°
Engine Kubota
Fuel Diesel
HP 22
Cooling Liquid
Cylinders 3
Peak Torque 41 ft/lb
Turning Radius 28 in
Max Slope 20°

Features

  • Ventrac Mount System
  • Articulating & Oscillating Frame
  • Hydrostatic All Wheel Drive
  • Patented S.D.L.A. Controls
  • Adjustable Weight Transfer System
  • Foot Control Standard
  • Tilt Steering Column
  • Rear Engine Design

Sidewalk Snow Broomlb540

Specifications

Tractor Compatibility 3400
Working Width 54"
Broom Diameter 16"
Rotation Forward
Broom Speed 300rpm @3200 engine rpm

Snow Blowerlx423

Specifications

Tractor Compatibility 3400
Operating Width 42"
Blowing Distance 35-40 ft (Approx)
Chute Rotation 180°
Cutting Height 22.5" (Height of Housing Opening)

4500 Series

Specifications

Engine Vanguard Model 54
Fuel Gas
HP (SAE J1995 gross) 31
Cooling Air
Cylinders 2
Torque 47 ft/lb
Max Slope Intermittent Use 30° (58%)
Max Slope Continuous Use 25° (47%)
Engine Kawasaki FD851D
Fuel Gas
HP (SAE J1995 gross) 31
Cooling Liquid
Cylinders 2
Torque 47.1 ft/lb
Max Slope Intermittent Use 30° (58%)
Max Slope Continuous Use 30° (58%)
Engine Kubota D902
Fuel Diesel
HP (SAE J1995 gross) 25
Cooling Liquid
Cylinders 3
Torque 42 ft/lb
Max Slope Intermittent Use 30° (58%)
Max Slope Continuous Use 20° (36%)
Engine Kubota WQ972-GGL
Fuel Gas | Propane Ready*
HP (SAE J1995 gross) 32.5 | 31*
Cooling Liquid
Cylinders 3
Torque 50.6 ft/lb
Max Slope Intermittent Use 30° (58%)
Max Slope Continuous Use 20° (36%)
Engine Kubota WG972-GGL
Fuel Gas | Propane Ready*
HP (SAE J1995 gross) 32.5 | 31*
Cooling Liquid
Cylinders 3
Torque 50.6 ft/lb
Max Slope Intermittent Use 30° (58%)
Max Slope Continuous Use 20° (36%)

Features

  • Ventrac Mount System
  • Center Articulating & Oscillating Frame
  • Hydrostatic All-Wheel Drive
  • Patented S.D.L.A. Controls
  • Industrial Grade Engine Options
  • Adjustable Weight Transfer System
  • Commercial Grade Design
  • Premium Comfort Seat

Power Broom hb580

Specifications

Tractor Compatibility 4500
Broom Width 58"
Broom Speed 220 rpm*
Weight 382 lbs

Features

  • Perfect for sidewalks
  • Hydraulic Power Angle from Operator Seat
  • Full Wrap Nylon Bristle Rotor
  • Adjustable Gauge Wheels
  • Adjustable Bristle Speed & Direction** (Requires Optional Electric Actuator)

Snow Blower kx523

Specifications

Tractor Compatibility 4500
Width 52"
Blowing Distance Up to 50'
Max Snow Capacity 4500 lbs/min
Chute Rotation 220°

Features

  • Heavy-Duty Blades
  • Heavy-Duty Steel Construction
  • 3 Cutting Heights
  • Counter Rotating Blades
  • Hydraulic Lift
  • Tilt-Up Deck for Easy Cleaning

V-Blade kv552

Specifications

Tractor Compatibility 4500 & 3400
Width 48-55"
Height 24"
Wing Angle +/-30°
Weight 240 lbs

Features

  • Hydraulically Angle Either Wing (Requires 12 Volt Switch Plug Kit)
  • Adjustable Cast Iron Skid Shoes
  • Adjustable Spring Controlled Trip Mechanism
  • Trip Lockout Pin for Digging in Material
  • Hardened Reversible Cutting Edge
  • Optional Polyurethane Cutting Edge
  • Optional 6-Inch Straight Edge Extensions
  • Optional 6-Inch Extensions with 6-Inch Top Flare

kd Series

Specifications

Tractor Compatability 4500 & 3400
Width 48"
Height 22"
Angle +/- 30°
Weight 163 lbs
Tractor Compatability 4500 & 3400
Width 60"
Height 22"
Angle +/- 30°
Weight 203 lbs
Tractor Compatability 4500 & 3400
Width 72"
Height 22"
Angle +/- 30°
Weight 225 lbs

Features

  • Hydraulically Angle Left/Right
  • Hardened Cutting Edge
  • Trip Lockout Pin for Digging in Material
  • Commercial Grade Design
  • Hardened Reversible Cutting Edge
  • Adjustable Cast Iron Skid Shoes
  • Optional Polyurethane Cutting Edge
